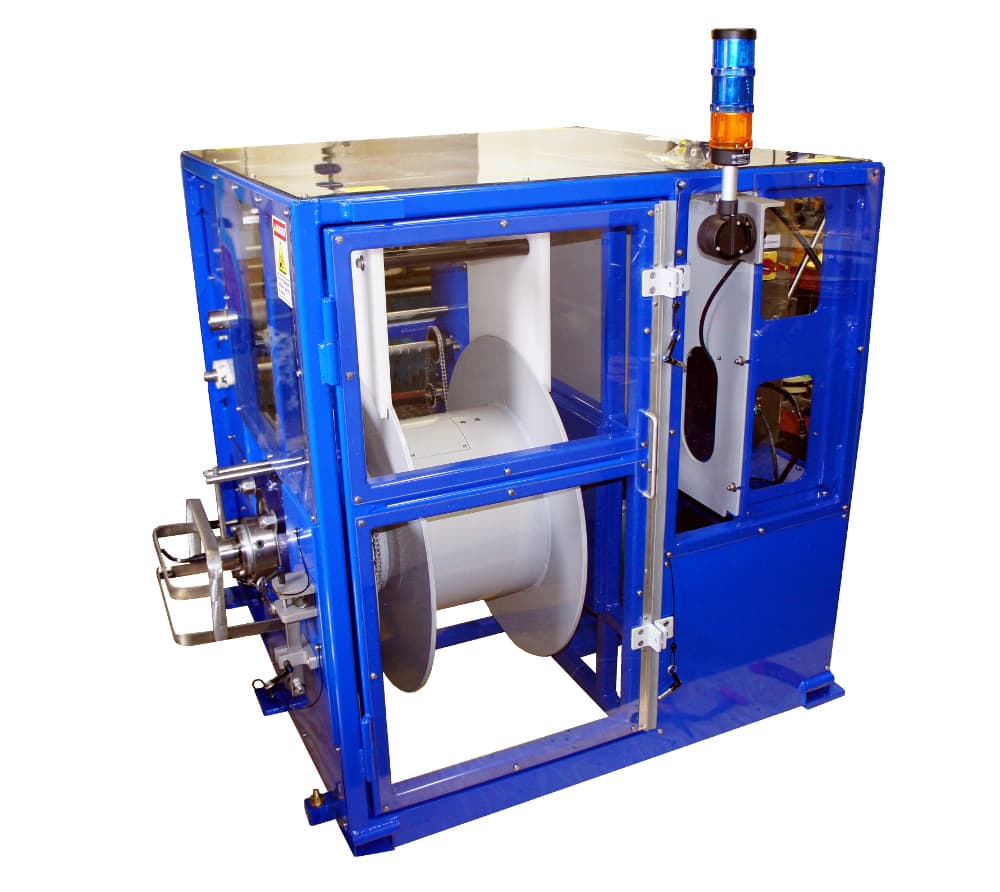

AGO CMW-2 3.75kW 3 Phase Winch
Typical Operations
- Side scan sonar deployment
- Magnetometer towing
- Gradiometer survey operations
- CTD deployment
- General oceanographic winch operations
Features
- 3.75kW (5HP) 3-phase AC motor
- Inverter drive system
- Enclosed frame design
- Integrated spooling gear
- Sealed slip ring assembly
- Supports up to 700m of 8.2mm cable
- Lightweight aluminium construction
Supplied in cooperation with GoSubsea
The AGO CMW-2 3.75kW 3 Phase Winch is a high-capacity electric survey winch developed for offshore survey and oceanographic operations. Based on the proven CSW platform, the CMW-2 delivers increased performance and cable capacity through a powerful 3-phase AC motor and inverter drive system.
Designed for reliable deployment and recovery operations, the system is well suited for towing side scan sonars, magnetometers, gradiometers and other marine survey equipment in demanding offshore environments.
