Diverting Frame for 15T Subsea Winch
Typical Operations
- Pulling Operation
- Mud Mat Installation
Features
- Pulling force 8.9 tonne
- Depth Rated for 2500 MSW
- Ø43 3-port Hot Stab Integration
- Frame act as clump weight
- Shave Wheel for lowering the rope

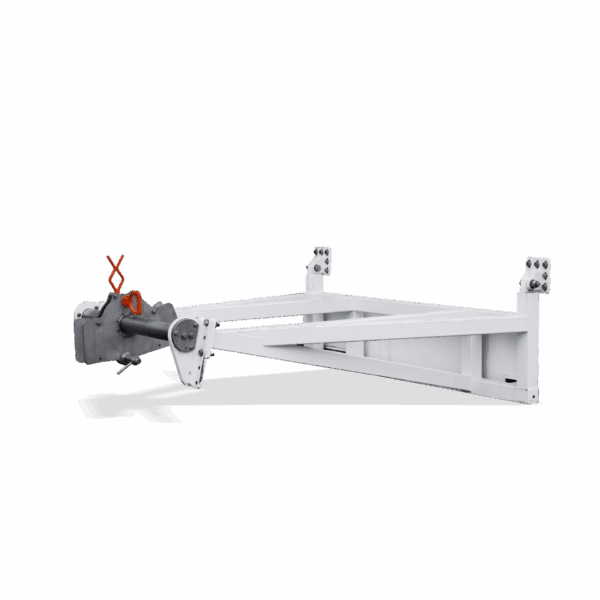

The Diverting frame are made upon request for lowering the pulling height of the 15t Subsea Winch. It lowers the pulling height from 1250mm to 500mm from the ground.

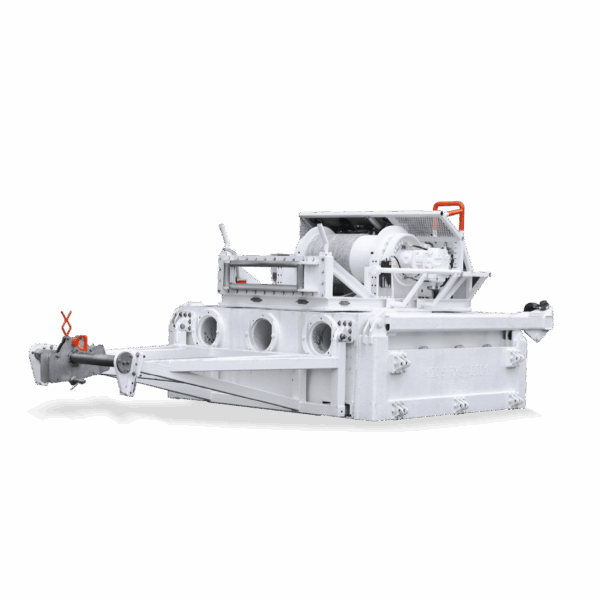

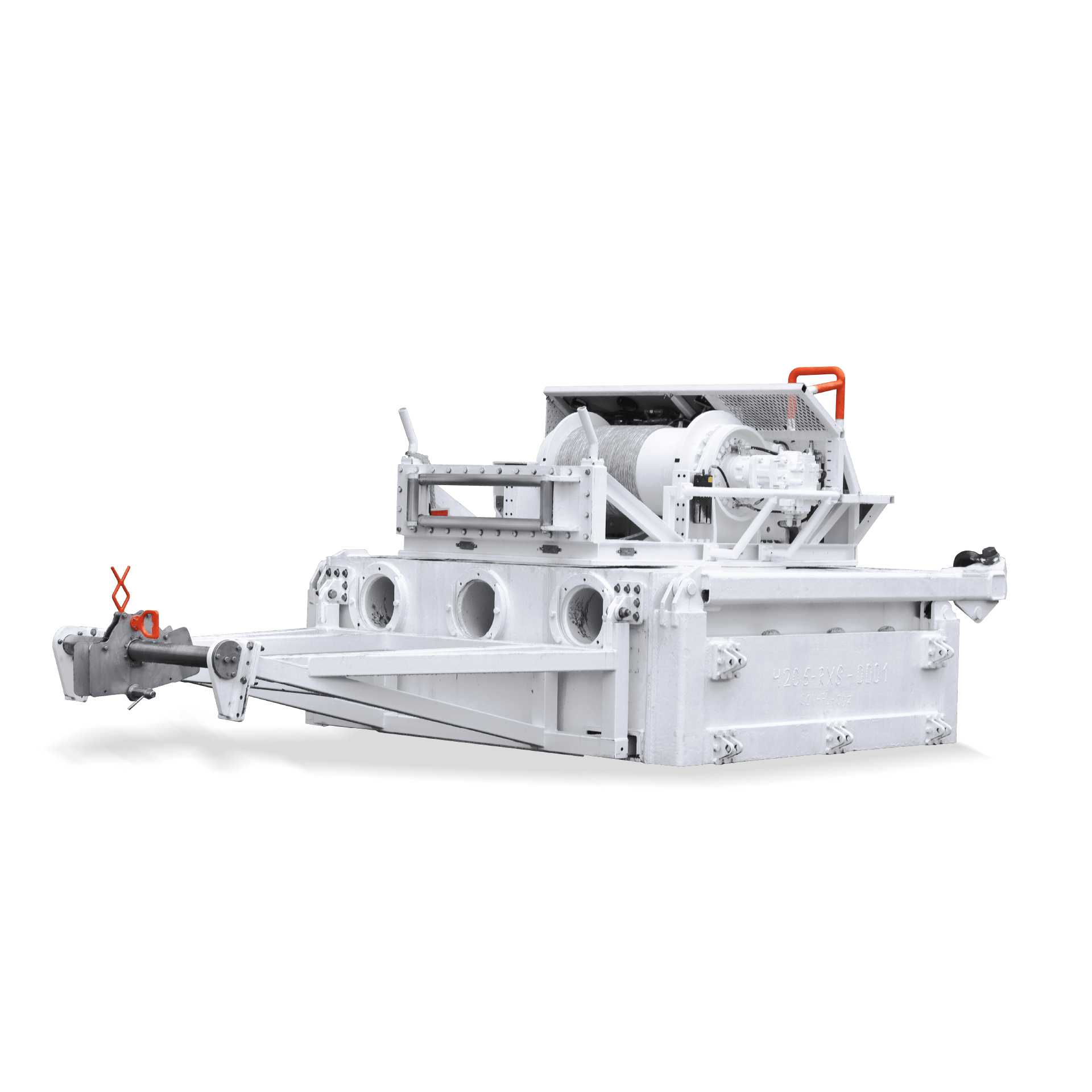

The Diverting Frame is easily mounted to the 15t Subsea Winch. When using the Diverting frame the maximum pulling force reduces to 8.9t. The height of the rope can be adjusted to three levels – 500mm, 570mm and 640mm from the ground.
The Sheave wheel also have 7 different locking positions horizontally which can be maneuvered subsea by an ROV.
