Flying Lead Orientation Tool
Typical Operations
- ROV Operations
Features
- ± 15 Degree roll angle
- Plus 60 minus 90 deg pitch
- Payload 250 kg
- Compact and robust design

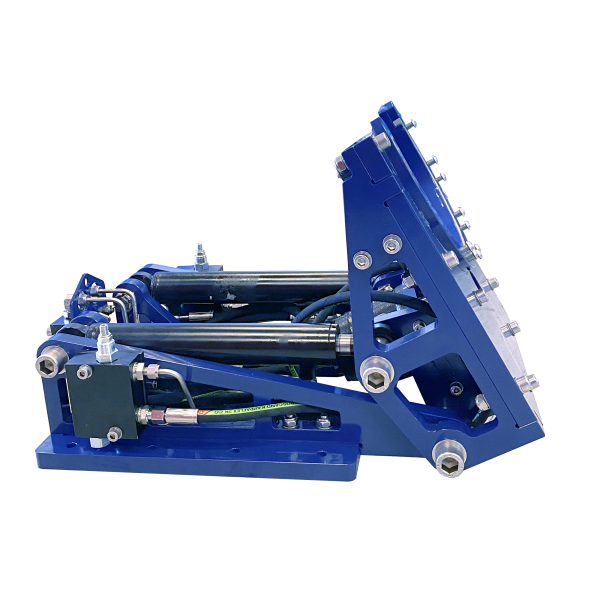

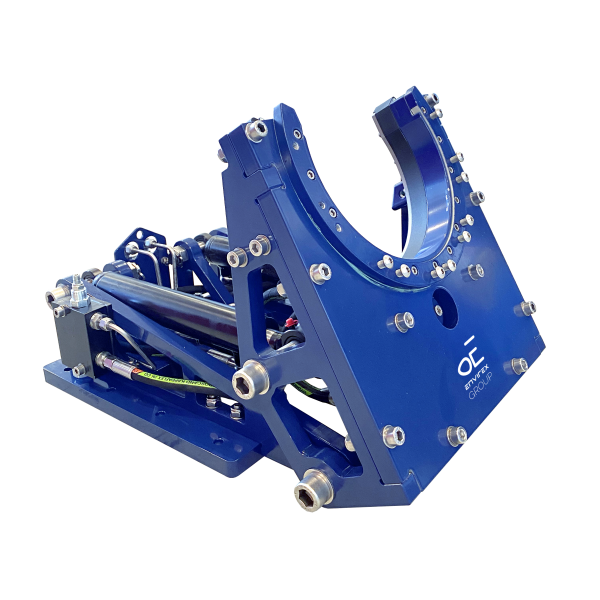

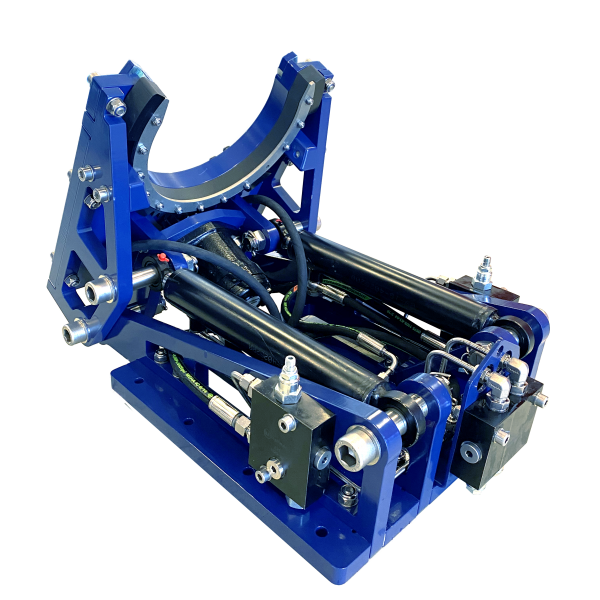

FLOT is designed to operate as a ROV mounted simplification tool to allow heavy applications such as torque tools, MQC plate and Flying Leads to be operated by ROV.
The Flying Lead Orientation Tool, or FLOT, is designed and built for ease of operation and maintenance.
The tool allows for angular and rotational orientation of a Class 4 torque tool to aid in the connection of flying leads subsea.
