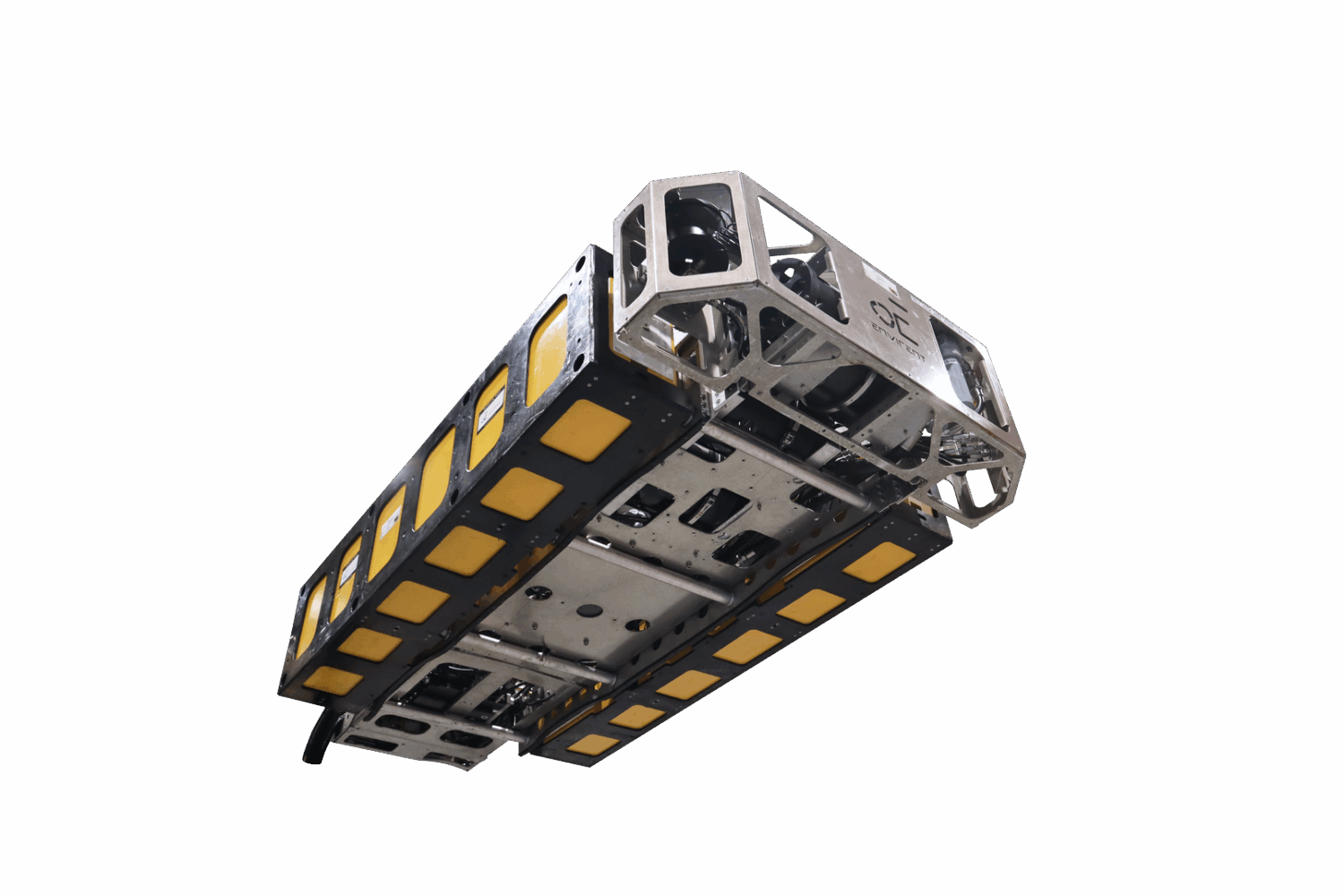

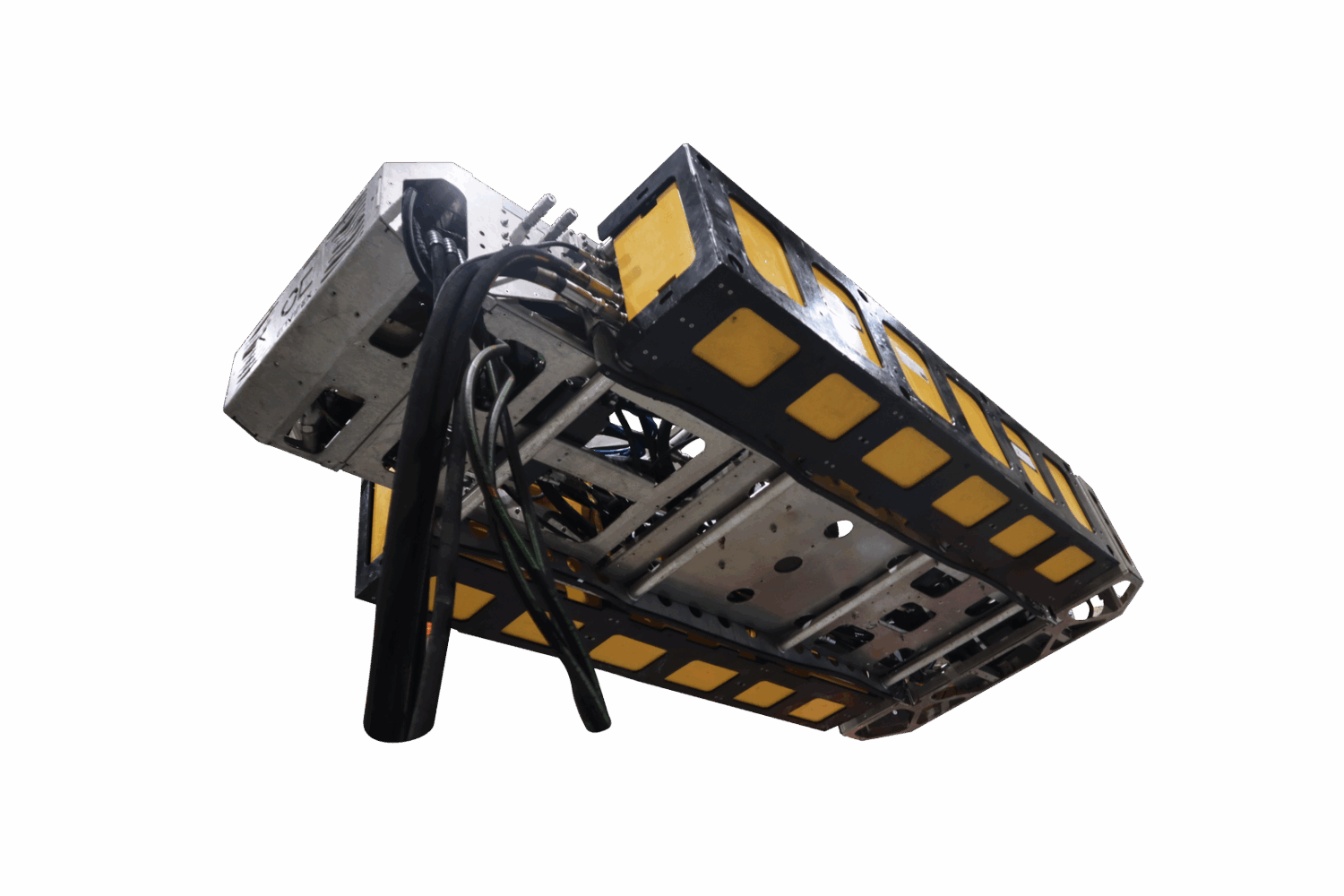

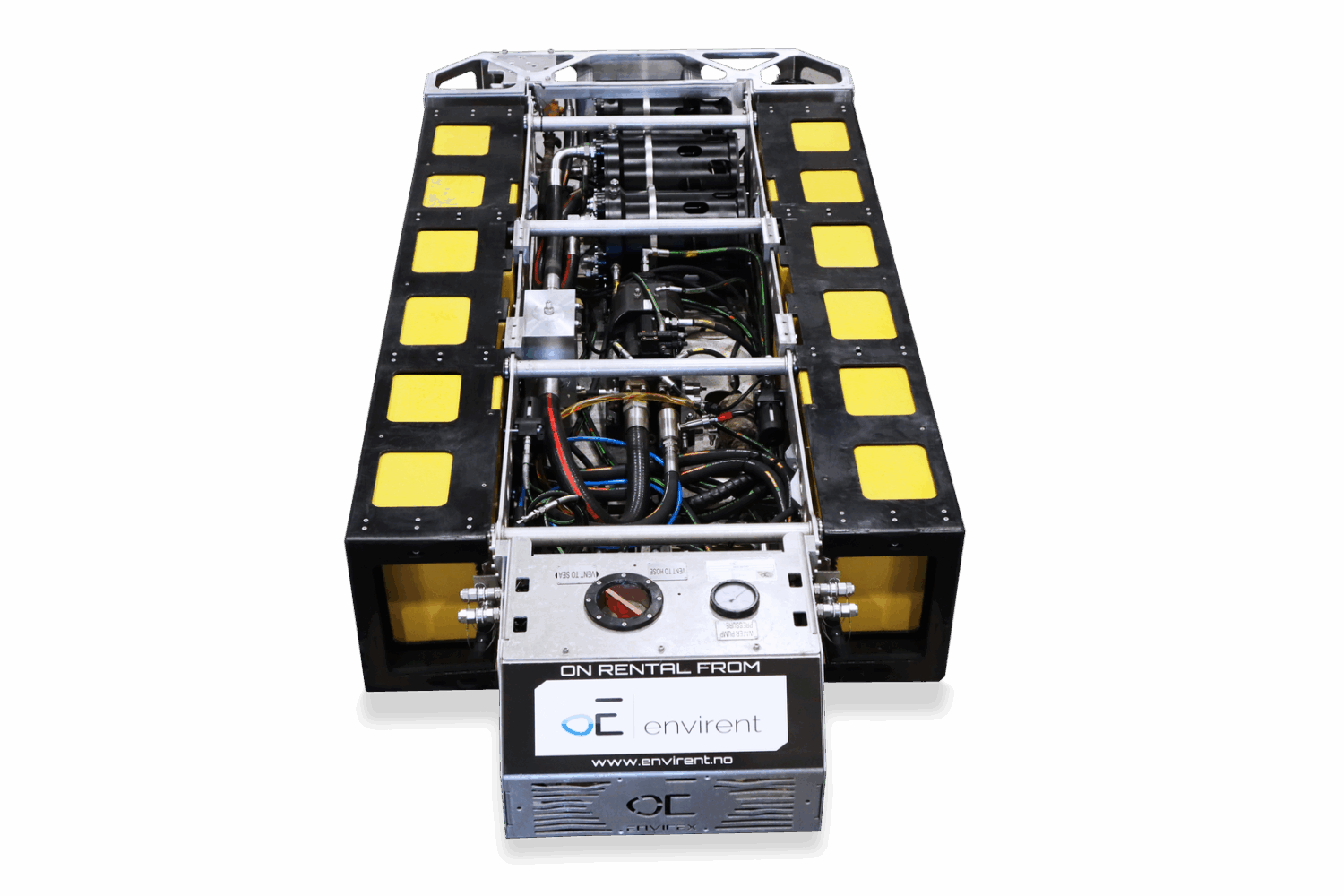

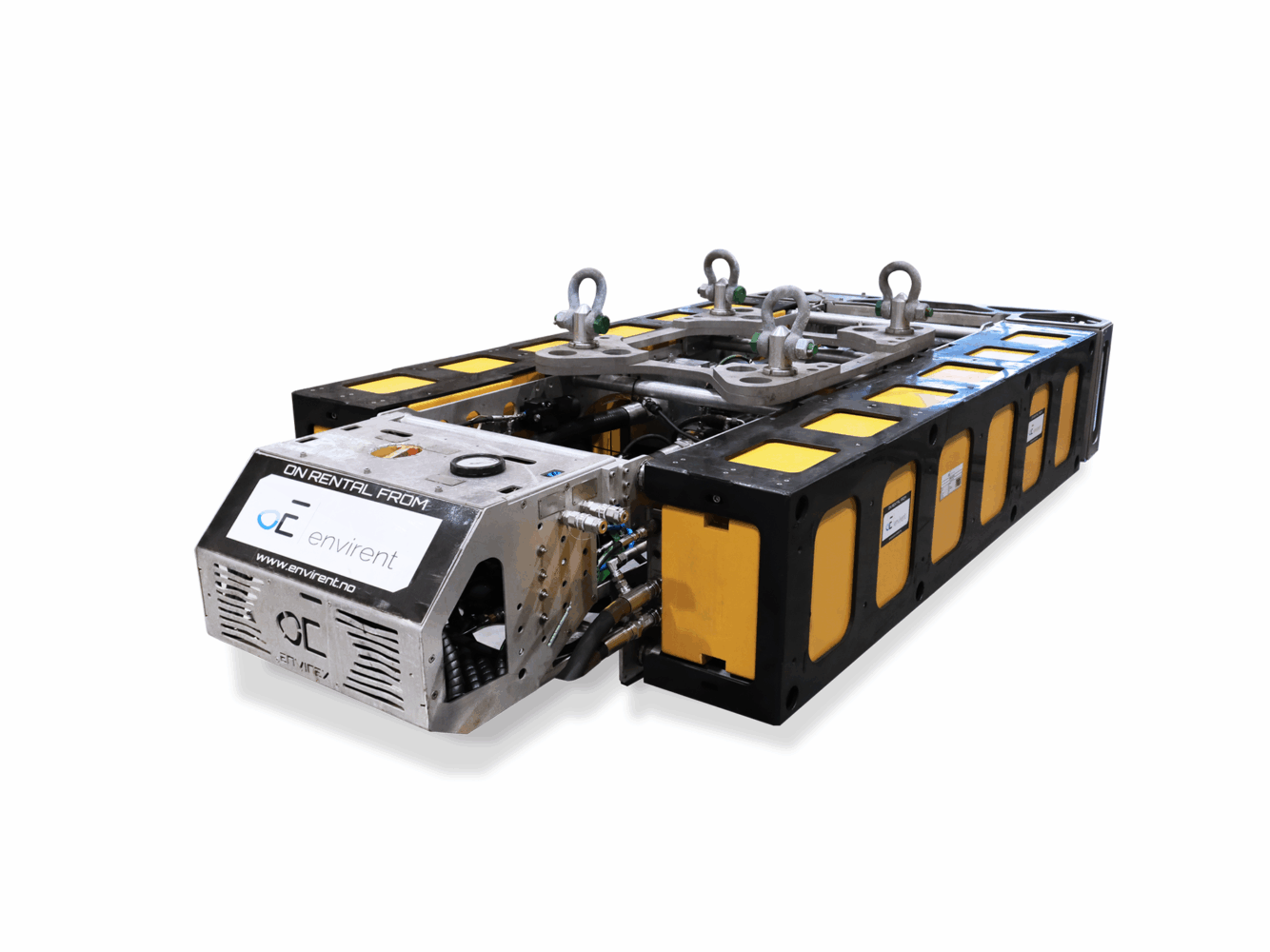

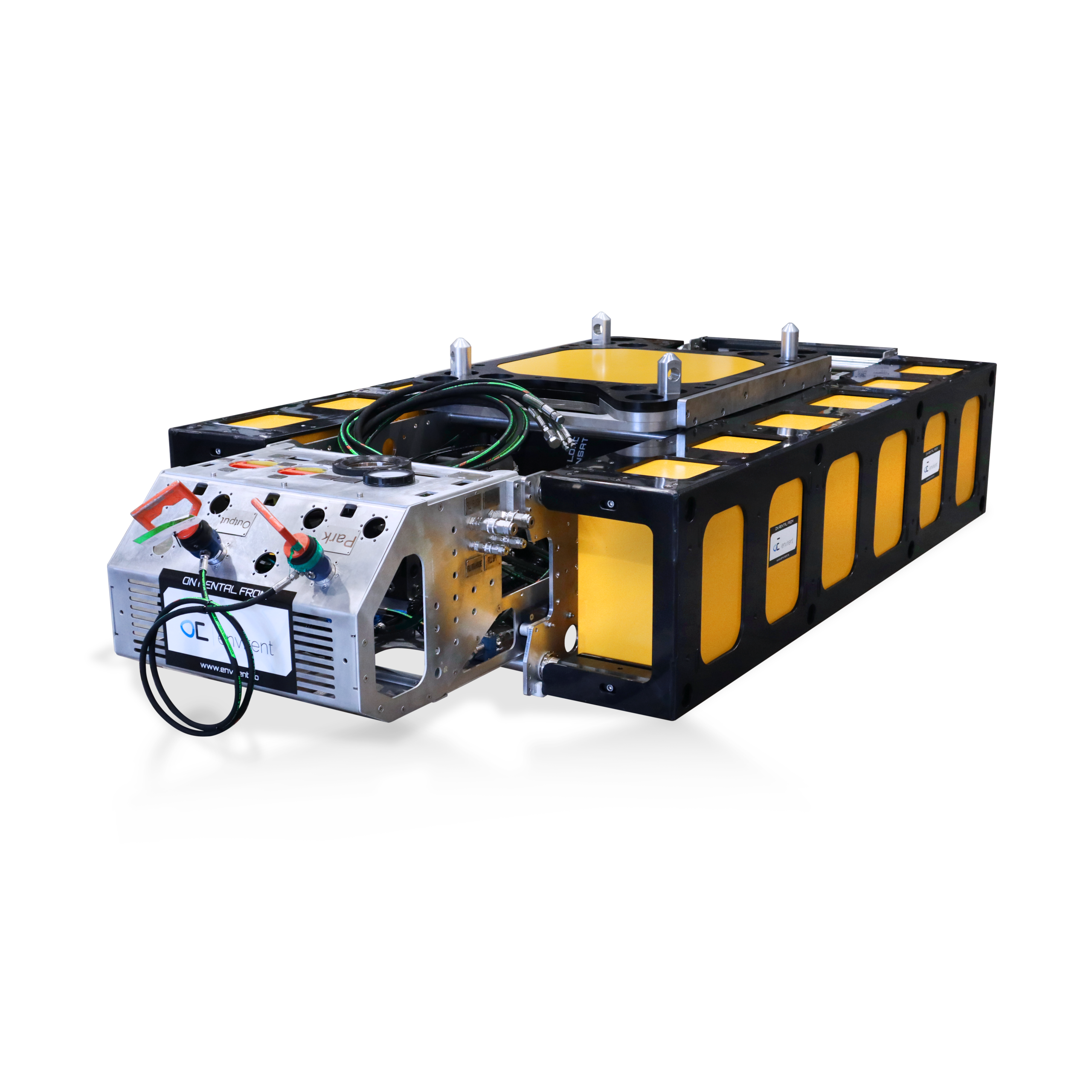

Octopoda GEN-2 High-Flow Dirty Work Pack Skid
Features
- Integraded Control System
- High Flow Pump 165 LPM @ 207 Bar
- Water Jetting Pump 50 LPM @ 207 Bar
- 50 liter compensated fluid reservoir
- Directional Control Valve on all outlets
- Pressure and Flow adjustment on all outlets
- Submerged weight 0 kg
- Coms. RS 232, 485 and Ethernet
The High Flow DWP Skid is designed to reduce cost in subsea operations related to completion, P&A, maintenance and other activities related to underwater operations.
Description
HF DWP Skid comes with 50 liter compensated reservoir, a modular subsea valve pack and a high flow proportional directional control valve rated to 165 LPM. Subsea valve pack allow individual adjustment of pressure and flow on all outputs. A water jetting pump is used to functioning of pilot lines, pressurization & testing and water jetting applications, controlled by the Subsea Valve Pack.
