High Pressure Multifluid Backpack
Features
- 800 Bar pump supply
- 30 L/min pump flow
- 80L flexible bladder reservoir
- Integrated flow control valve
- Pressure Relief & Relieving Valve
- Pressure Safety Valve
- Pilot to open vent-valve
- Dual acting booster pump
- Bulkhead connection plate
- Integrated DCV Valve

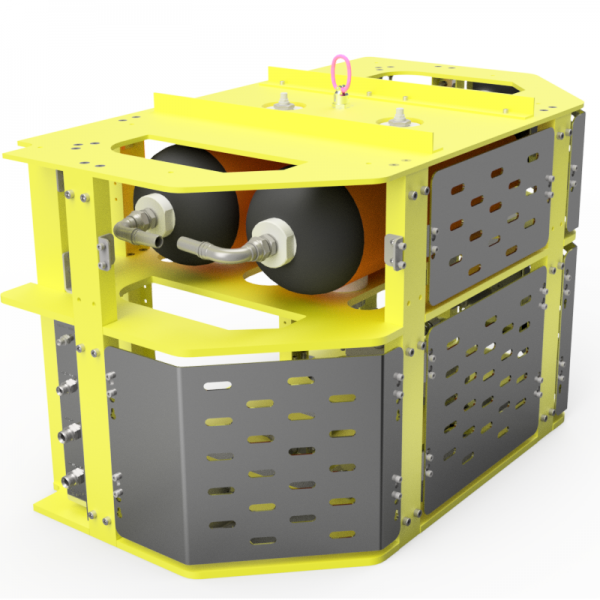

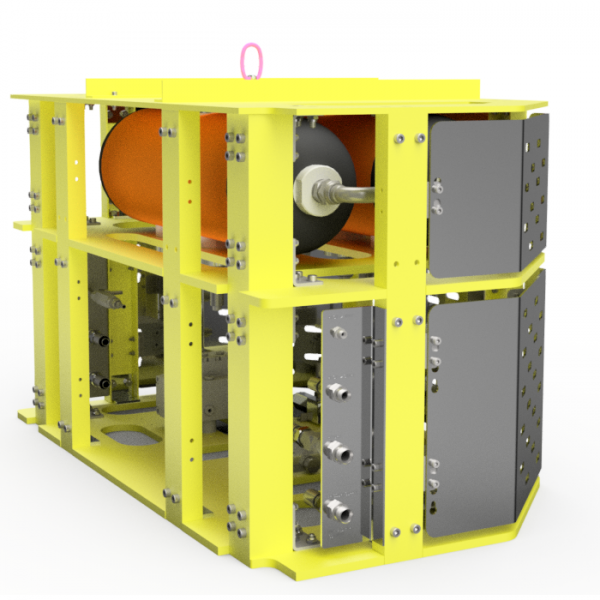

The High Pressure Multifluid Backpack is compact, simple to incorporate and service friendly all-in-one pump system.
The Backpack pump system is an isolated hy-draulic pump unit that can easily incorporate into a ROV hydraulic system to provide an isolated hydraulic high-pressure supply for multifluid injection, pressure testing and intervention work. The Backpack skid consist of an 80L reservoir, 800 bar pump, depth compensated flow-reducing valve and pressure safety valves. It can easily be fitted with pressure testing equipment and logging software for recording of pressure testing.
