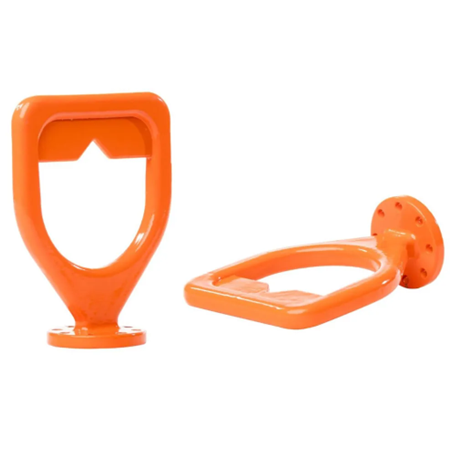

ROV D-Handle SS 316L
Type ROV Handle
Model D-Handle
Part No V100192
Material SS 316L
Weight Air 1,41 kg
Weight Water 1,23 kg
Dimensions W x H 135 mm x 175 mm
Bolt Holes Ø 7 mm
PCD 56 mm x 8
Flange Ø 70 mm
Color RAL 2004
The ROV D-Handle is a part of our ROV handle family with standard flange dimensions and interface. It fits perfectly on the Rubber Joint.
