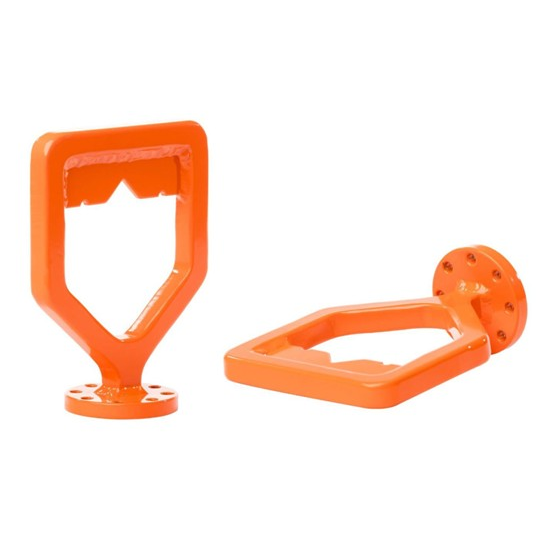

ROV D-Handle Super Duplex
General Specifications
Type ROV Handle
Model D-Handle
Material Super Duplex
Weight Air 1,24 kg
Weight Water 1,08 kg
Dimensions W x H 135 mm x 175 mm
Bolt Holes Ø 7 mm
PCD 56 mm x 8
Flange Ø 70 mm
Color RAL 2004
The ROV D-Handle is a part of our ROV handle family with standard flange dimensions and interface. It fits perfectly on the rubber Joint.
