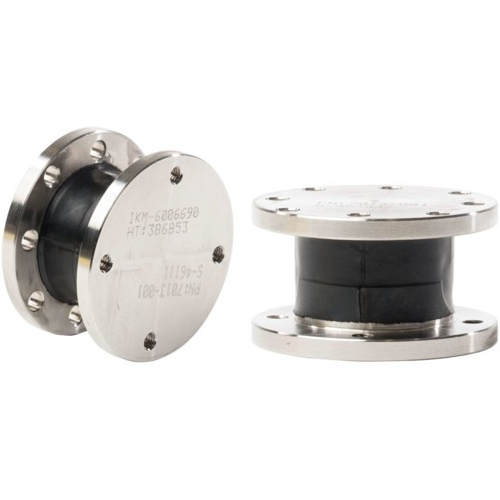

ROV Rubber Joint SD
Type ROV Handle
Model ROV Rubber Joint
Material Super Duplex, Rubber
Weight Air 0,5 kg
Weight Water 0,45 kg
Height 40 mm
PCD Flange 1 56mm, M6 threads, 4 holes
PCD Flange 2 Ø 56 mm x 4 + 60 mm x 4, 8 free holes Ø6,5
Diameter Ø 70 mm
The ROV Rubber Joint is based on standard flange dimensions for ROV Tooling interfaces. It is mounted on tools where flexibility is required, to simplify manipulator operations.
It is designed to withstand forces equal to 500 kg applied in any direction and handle max wrist torque from all commonly used ROV manipulators.
Flex-angle: Between 10 and 14 degrees.
