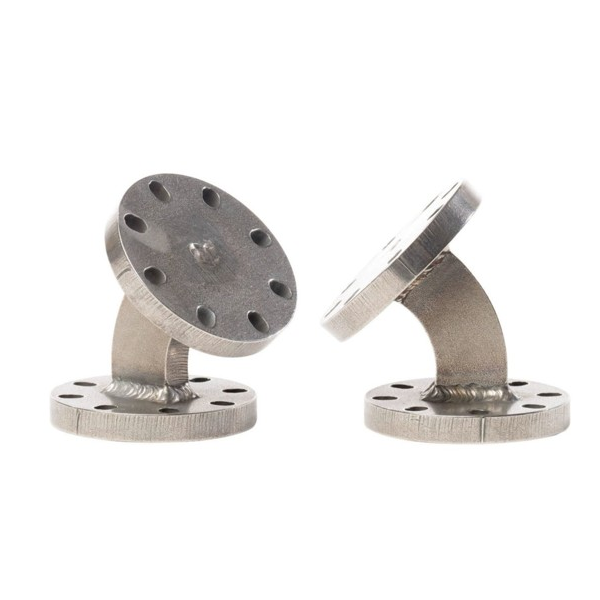

ROV Tooling Adapter 45°
Type ROV Handle
Model ROV Tooling Adapter 45°
Material SS 316L
Weight Air 0,7 kg
Weight Water 0,6 kg
Height 95 mm
Bolt Holes Elongated 7 x 9 mm, 8 holes pr plate
PCD 56 mm and 60 mm
Diameter Ø 72 mm
The tooling Adapter with 45° angle is based on standard flange dimensions. It is to be used with handles and rubber Joints.
