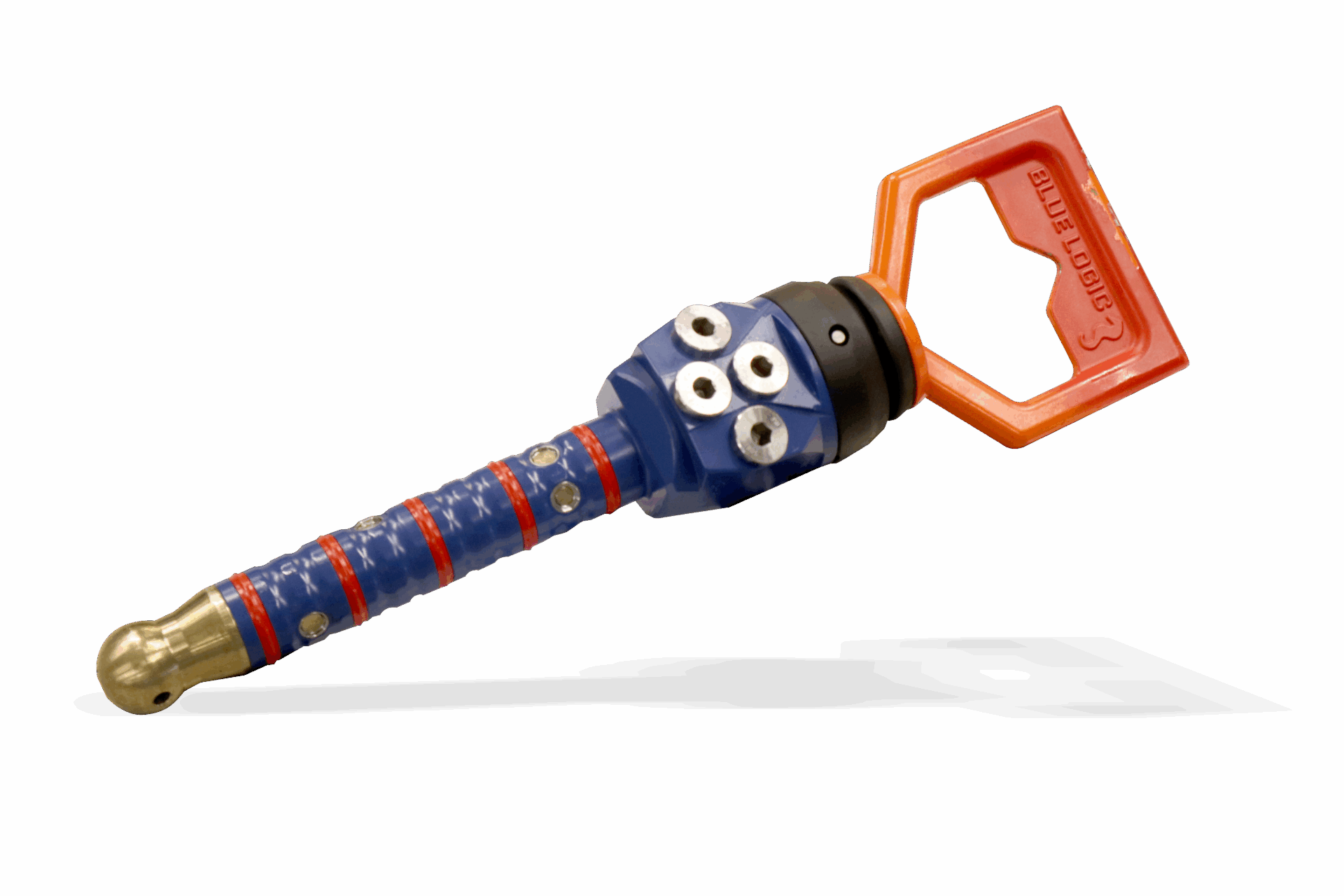

Stab Ø35MM QP-10K-Interv W/CV BSP 3/8”

Typical Operations

  • Topside Tooling Applications
  • Subsea Operations
  • Function Testing
  • Flushing

Features

  • Field Proven
  • Integrated with Check Valves
  • Compact Design
  • Service and User Friendly
  • Robust

The Ø35mm Hot Stab is made accordingly to API 17H Type 1 and comes in different types and configurations to suit a wide range of applications.

Ø6 bores for maximum flow and minimum pressure drop. Pressure tested to 1.5 x design pressure. Designed for flow up to approximately 25 l/min.

ROV or diver operated. Low mating force and easy entering, integrated flexjoint between stab and D-handle. Locking mechanism for stab available for critical applications.

Available in 1,2,3 and 4-port configurations for maximum flexibility. 1-4 ports receptacles, pressure stabs, dummy stabs and parking receptacles available.
