Stab Ø43MM DP-20K-Interv W/CV
Typical Operations
- Topside Tooling Applications
- Subsea Operations
- Function Testing
- Flushing
Features
- Field Proven
- Integrated with Check Valves
- Compact Design
- Service and User Friendly
- Robust

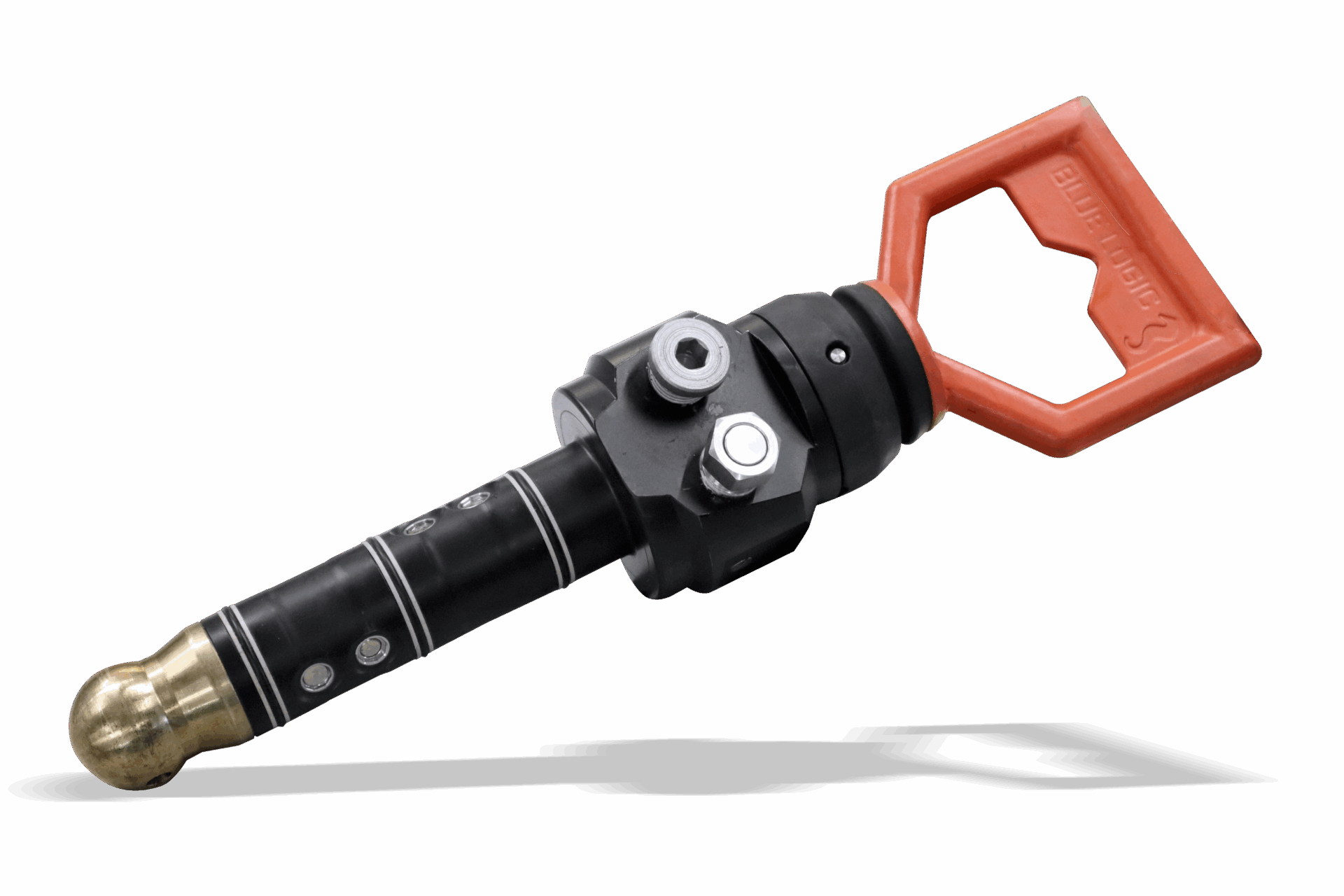

The Ø43mm Hot Stab is made accordingly to API 17H Type 1 and comes in different types and configurations to suit a wide range of applications.
Ø8 bores for maximum flow and minimum pressure drop. Pressure tested to 1.5 x design pressure.
Typical pressure drop: 15 bar @50 L/min.
ROV or diver operated. Low mating force and easy entering, integrated flexjoint between stab and D-handle. Locking mechanism for stab available for critical applications.
Available in 1,2,3 and 4-port configurations for maximum flexibility. 1-4 ports receptacles, pressure stabs, dummy stabs and parking receptacles available.
