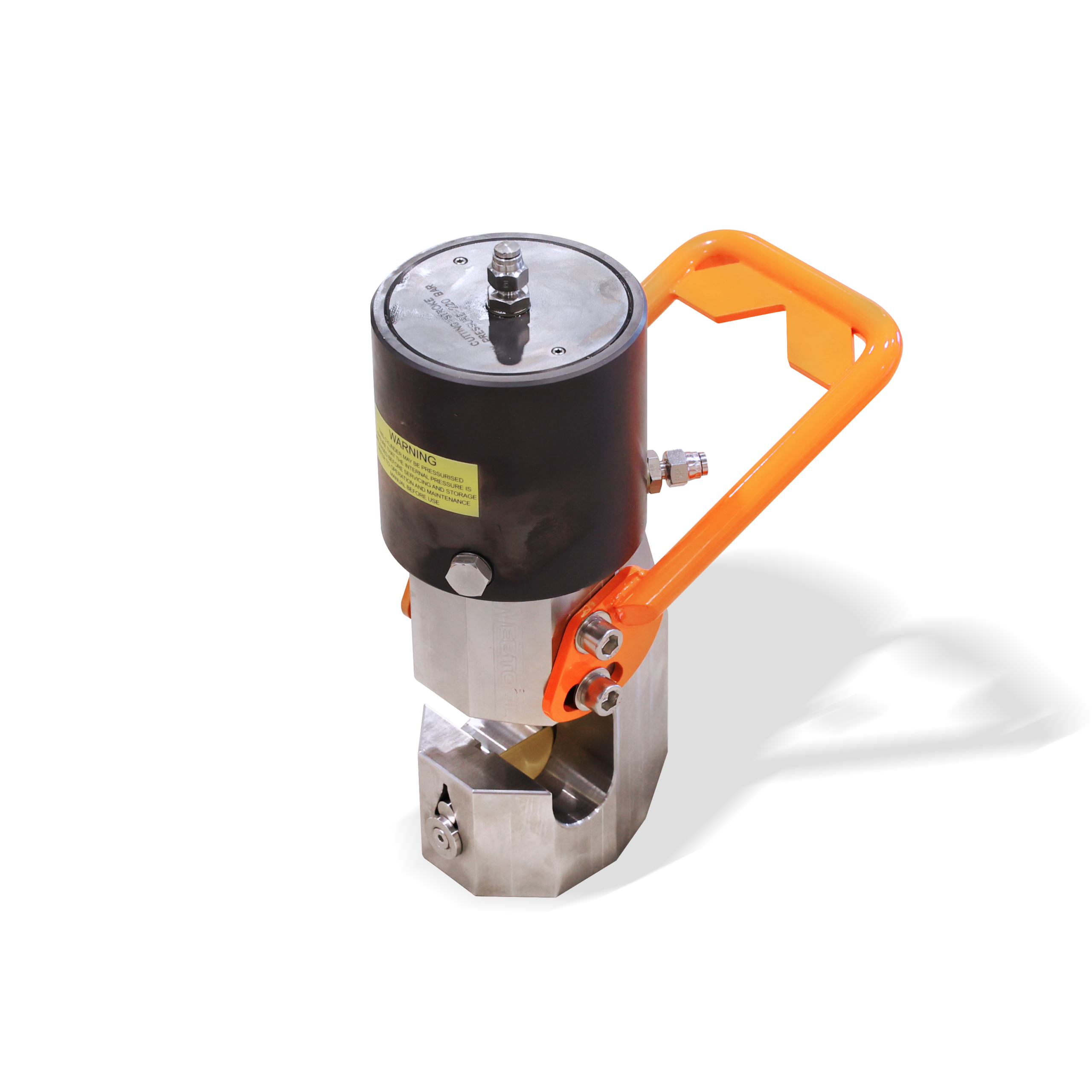

Wire Rope Cutter 38mm RCO40LP
Typical Operations
- Cutting Operations
- Tooling Operations
- Marine Maintenance
- Large Diameter, High Tensile Wire Operations
- Construction and Rigging Operations
Features
- Double-acting mechanism
- Cuts up to 38,1 mm (1,5 inch) dia
- Handles tensile strength up to 1960 N/mm²
- Specific high-grade, large diameter applicationsDurable, heavy-duty construction

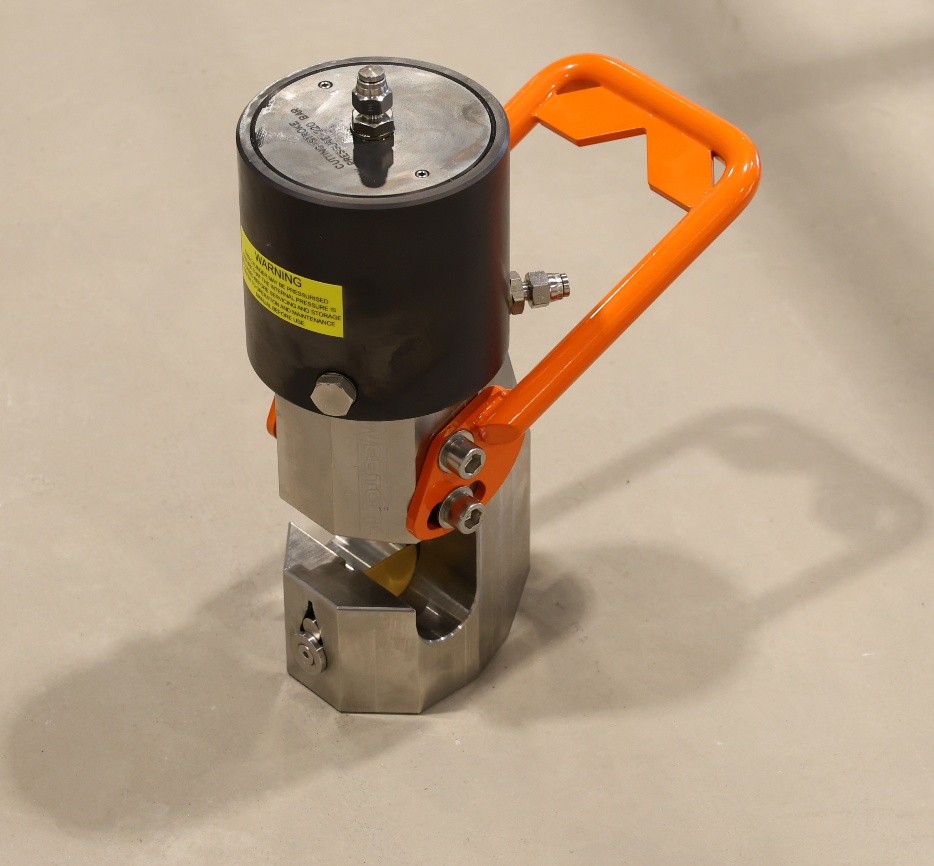

The RCO40LP is a double-acting cutting tool designed primarily for use on steel wire rope. It can cut wire rope up to 38.1 mm (1.5 in) in diameter, with a maximum tensile strength of 1960 N/mm². To ensure compatibility, individual wire strands must have a minimum diameter of 1.5 mm (1/16 in).
The tool may also be used on alternative materials, including electrical power and communication cables, up to a maximum diameter of 38 mm. For guidance on cutting capacities for other materials, users should contact us.
This equipment is not suitable for operation in explosive environments.
