Backpack Tray 3 x 50L Comp
Typical Operations
- Tooling Operations
- Subsea Installation and Intervention
- IMR Operations
- Survey Support Tasks
- Extra Fluid Reservoir System
Features
- Three 50L Compensators
- Configurable and modular design
- Removable/adjustable buoyancy system
- Compact design and ROV compatible
- Integrated LVDT for digital feedback
- Optimized for stability and weight reduction in water
Description

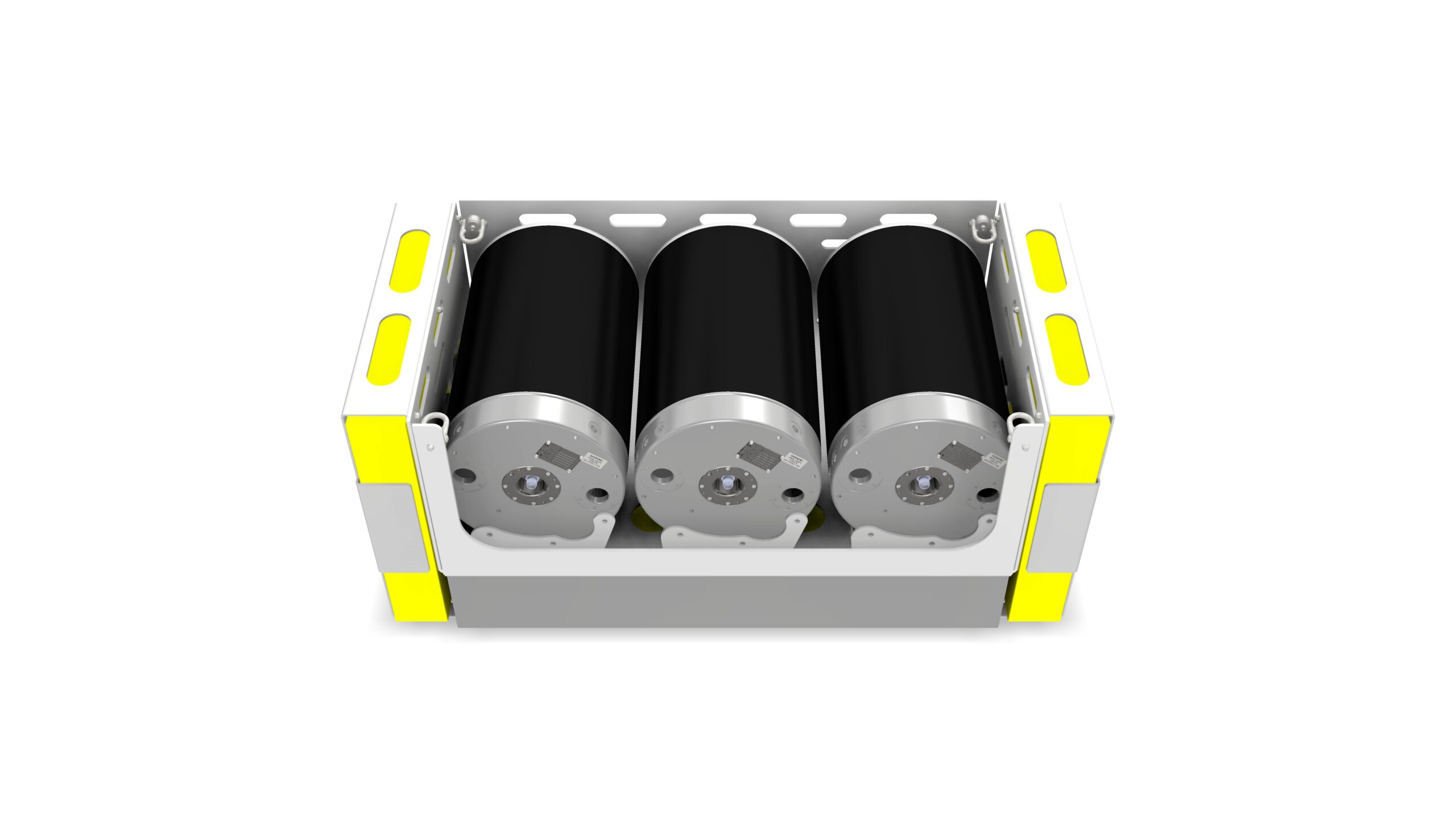

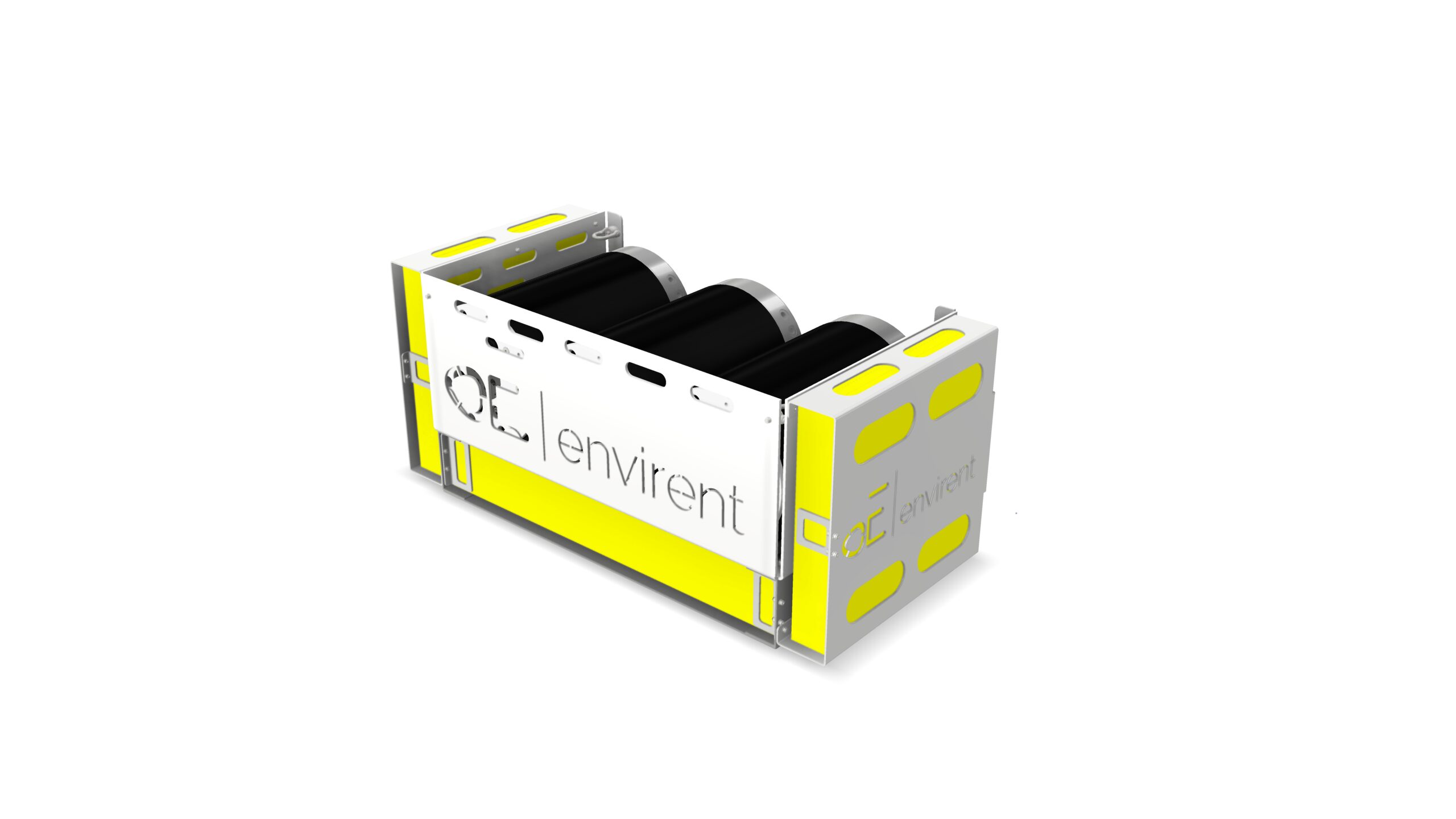

This backpack tray features three 50-liter compensators and a configurable design, allowing easy adaptation to different operational requirements.
The integrated buoyancy system reduces effective weight in water while providing controlled lift and stability. Its streamlined, space-efficient design ensures compatibility with most ROVs without adding unnecessary bulk. Buoyancy elements can be removed or adjusted. The compensators can also be repositioned or configured to free up space for additional equipment, such as pumps or other tooling, increasing overall system flexibility
An integrated LVDT enables accurate digital readout directly from the ROV, supporting reliable monitoring and control.
