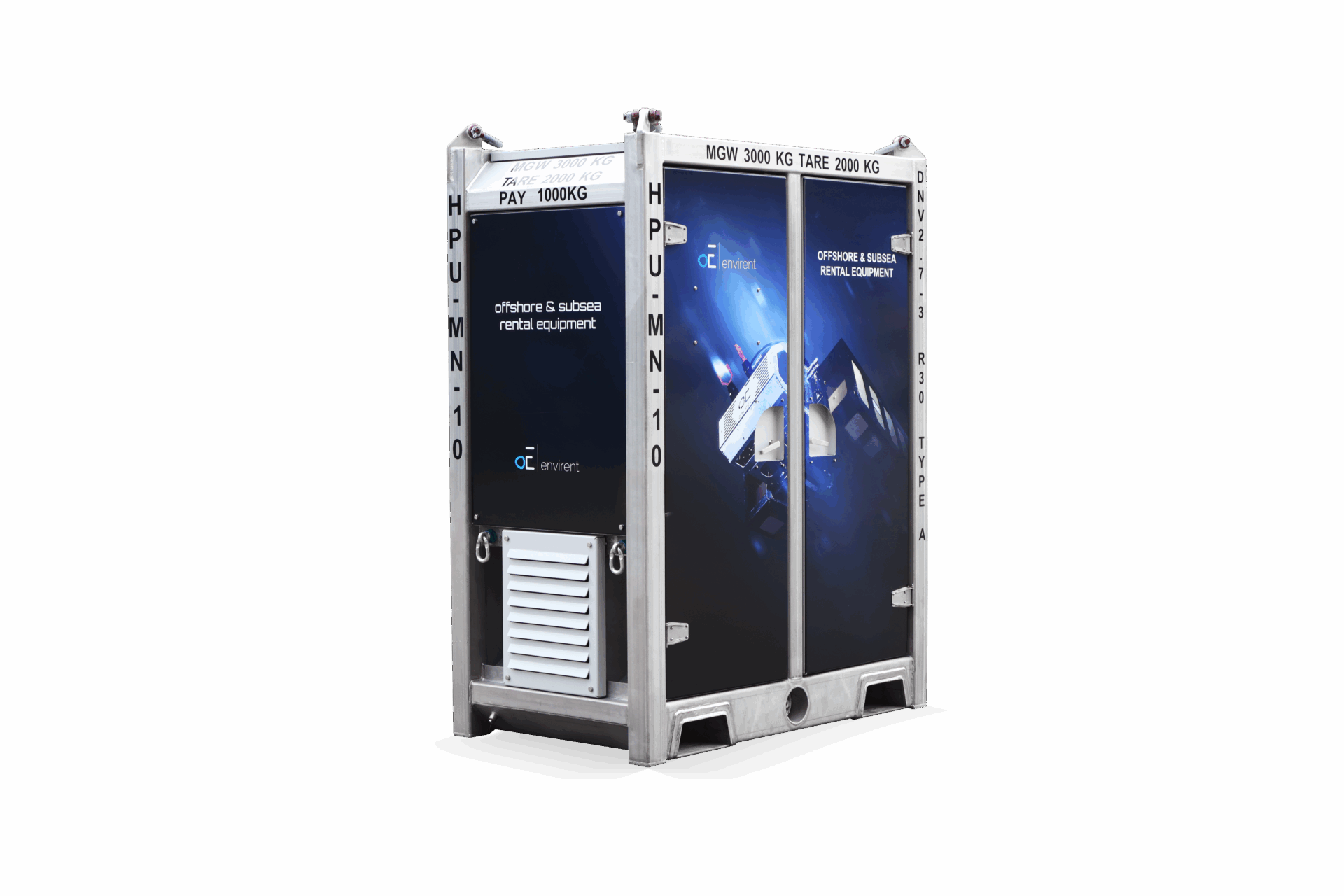

Hydraulic Power Unit 30kW
Features
- ATEX Zone II approved
- Integrated Forklift Pockets
- Service and User Friendly
- Integrated Oil Cooler
- Easy Connection Interface
- Temperature Guard
- Oil Level Guard
- Pressure Gauges
- Sea fastening Shackles
Typical Operations
- Topside Tooling applications
- Deck testing
- Function Testing
- Flushing
The Envirent 30kW HPU is both DNV 2.7-3 and ATEX Zone II approved. The AISI 316L frame, doors and covers makes it very robust.
30kW HPU can deliver up to 320 bar and up to 140 l/min at 60Hz. Filter on both pressure and return line makes sure to keep the oil clean, to prevent debris and particles to enter tooling applications.
Oil / air cooler is integrated and is ran by an internal hydraulic line. No need for external connections.
