ROV ISO Docking Beam
Typical Operations
- Docking Operations
- Inspection Operations
- Tooling Operations
- Intervention Operations
- Installation / Retrival Operations
Features
- ISO 13628-8 Interface
- Dual Docking Probes
- Modular Design
- ROV adaptable
- High-strenght construction
- Corrosion resistant
- Precise alignment support
Description

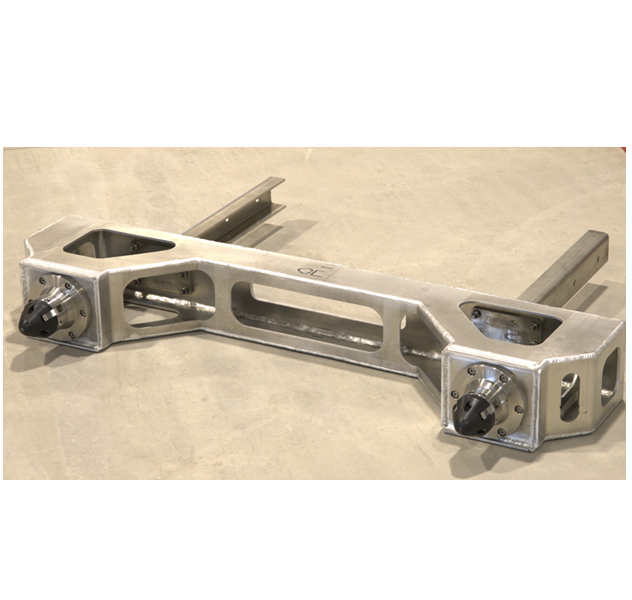

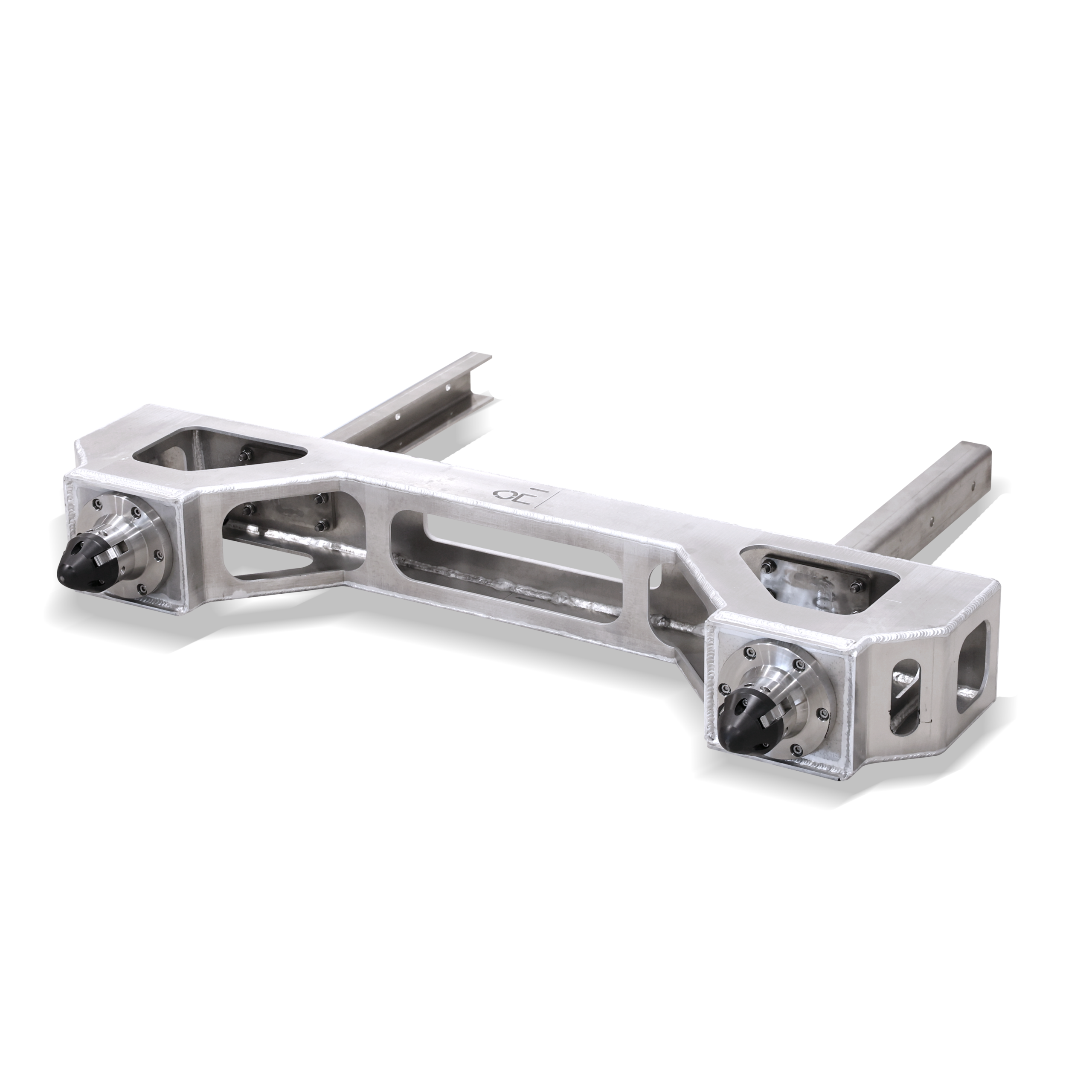

The ROV ISO Docking Beam is a robust intervention tool designed for installation on the front of Supporter or Constructor ROV and can be made to fit other work-class ROVs.
The system can be customized to interface with a wide range of ROV models. It is optionally equipped with two ISO 13628-8 compliant docking probes/latches, enabling secure and reliable engagement with subsea assets.
The primary function of the docking beam is to facilitate stable docking of the ROV to various subsea structures, supporting precise intervention and operational efficiency.
